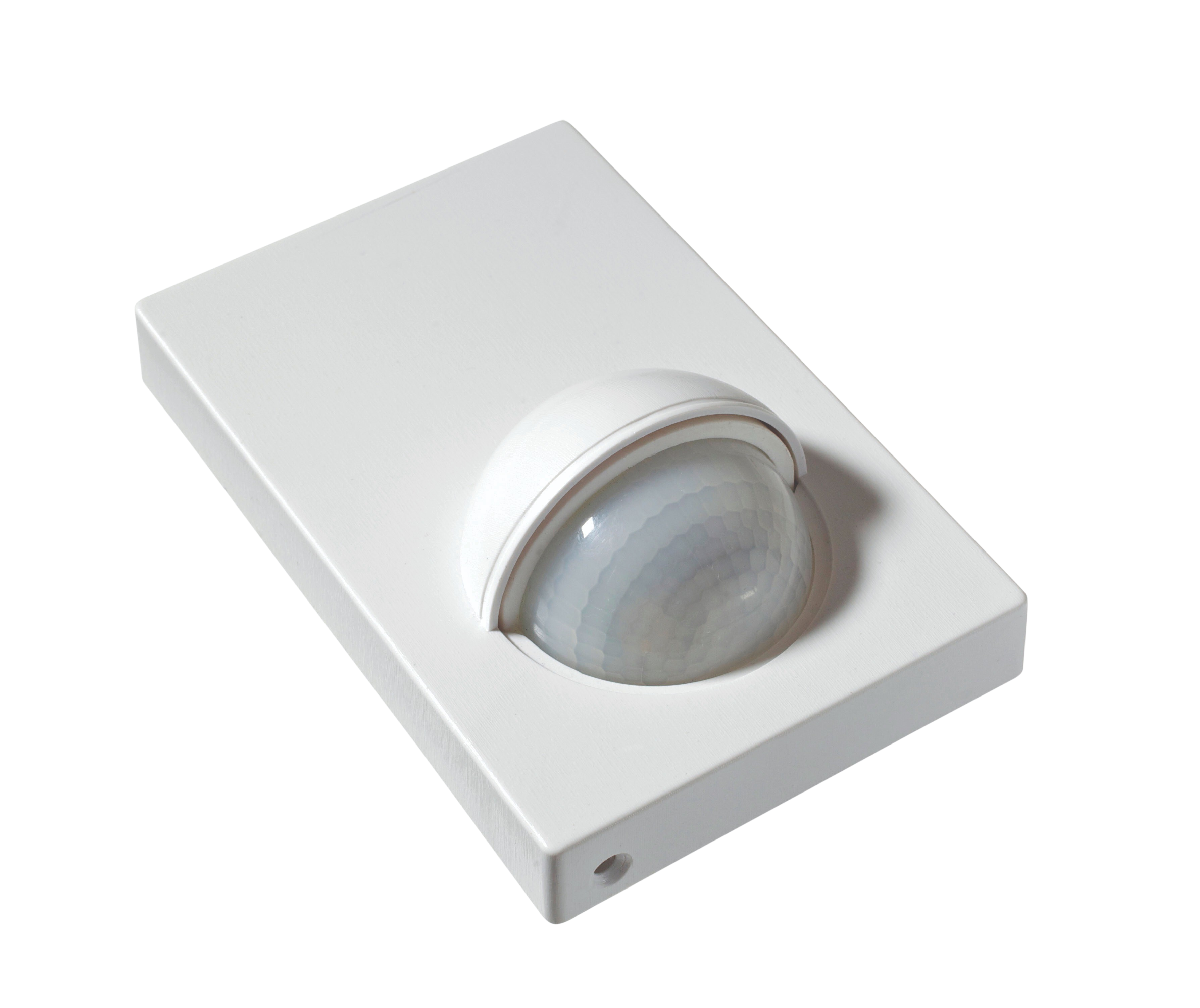

PROTON 180º PIR, IP44, wall mounted, Manual Override

    Categories

    PROTON 180º PIR, IP44, wall mounted, Manual Override
    Code: RPR180PIRW-01
    Order in multiples of: 1
    Loading...


    Product Description
  • Passive infra red ensures light is switched on when sensor detects movement of heat, switched off when area is vacated. Minimises false / unwanted triggering
  • Suitable for outdoor sheltered applications
  • Manual over ride with automatic reset after 8 hours
  • Large terminals accept 2 x 1.5mm2 conductors in each terminal. Facility for loop in loop out
  • Earth terminal included
  • 3 wire - multiple sensors can be wired in parallel
  • High load contact rating, allows numerous fittings to be switched
  • No minimum load requirements
  • Maximum loading: - 1200W Incandescent - 300W Fluorescent - 300W LED
  • Adjustable time delay of 10sec to 15min
  • Adjustable lux settings 3lx to 2000lx
  • Max detection area of 12m diameter at 2.5m
  • Corner mounting bracket available as accessory - code: RPRBRKW-01
  • Not for sale in Germany, France, Belgium, Netherlands, Switzerland, Luxembourg and Italy
